SPECIFICATIONS
1. Motor, Controller and Battery
| Technical Specifications | |
| Motor Power (W) | 500 |
| Motor Type | Hub Motor |
| Controller Type | 60V |
| Battery Type | Lead-acid |
| Battery Capacity (V/Ah) | 48/16 |
| Charging time (0%-100%, hour) | 4-6 |
2. Basic Info
| Technical Specifications | |
| Suspension (Fr./ Rr.) | Normal |
| Brake System (Fr./ Rr.) | Disc ,Drum |
| Tyre Size (Fr./ Rr.) | 7 inch, 2.75-10 |
| Wheel Type | Iron |
| Speedometer | LED |
| Vehicle Size (mm) | 1680*690*1090 |
| Wheel Base (mm) | 1150 |
| Ground Clearance (mm) | 200 |
| Seat Height (mm) | 770 |
3. Performance
| Technical Specifications | |
| Max. Speed (Speedometer, km/h) | 40 |
| Max. Load (kg) | / |
| Distance Range (70kgs rider, flat road, km) | 45 |
| Climbing Capacity (°) | 25 |

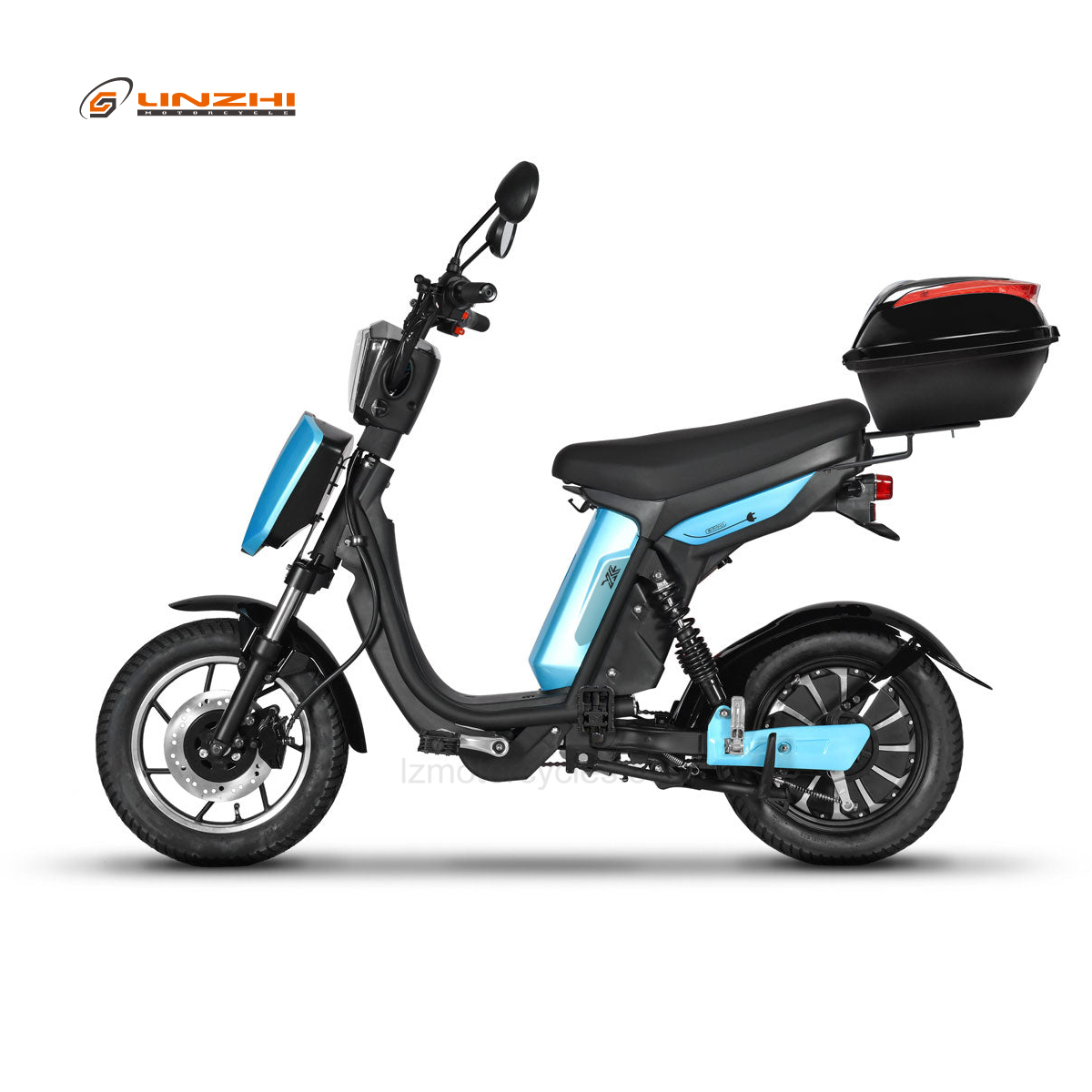

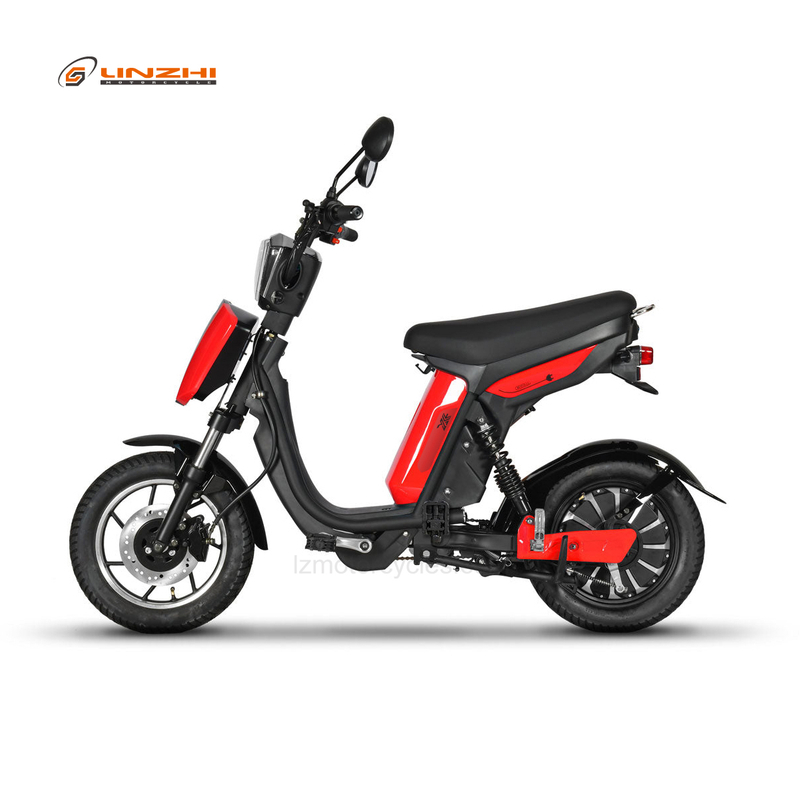

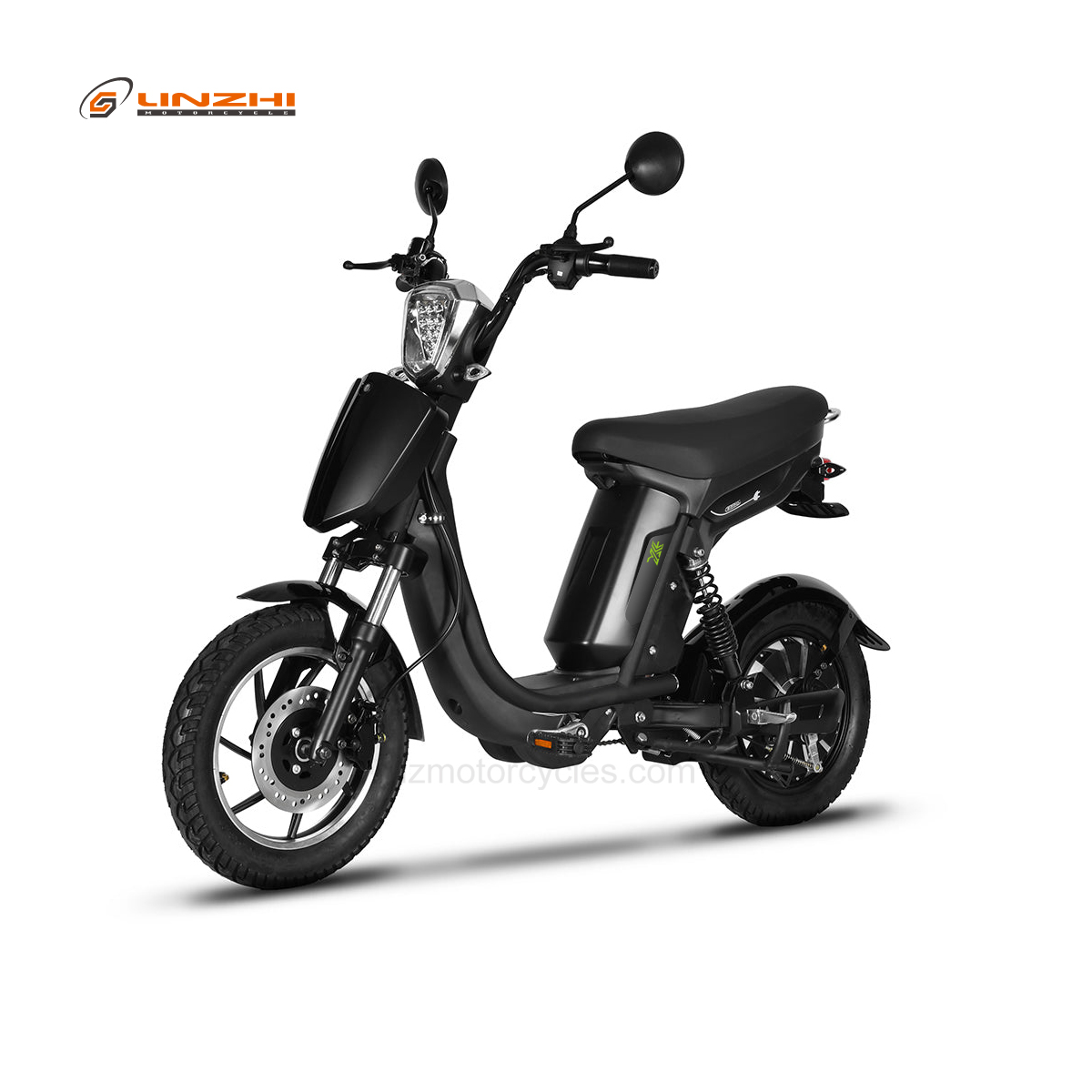

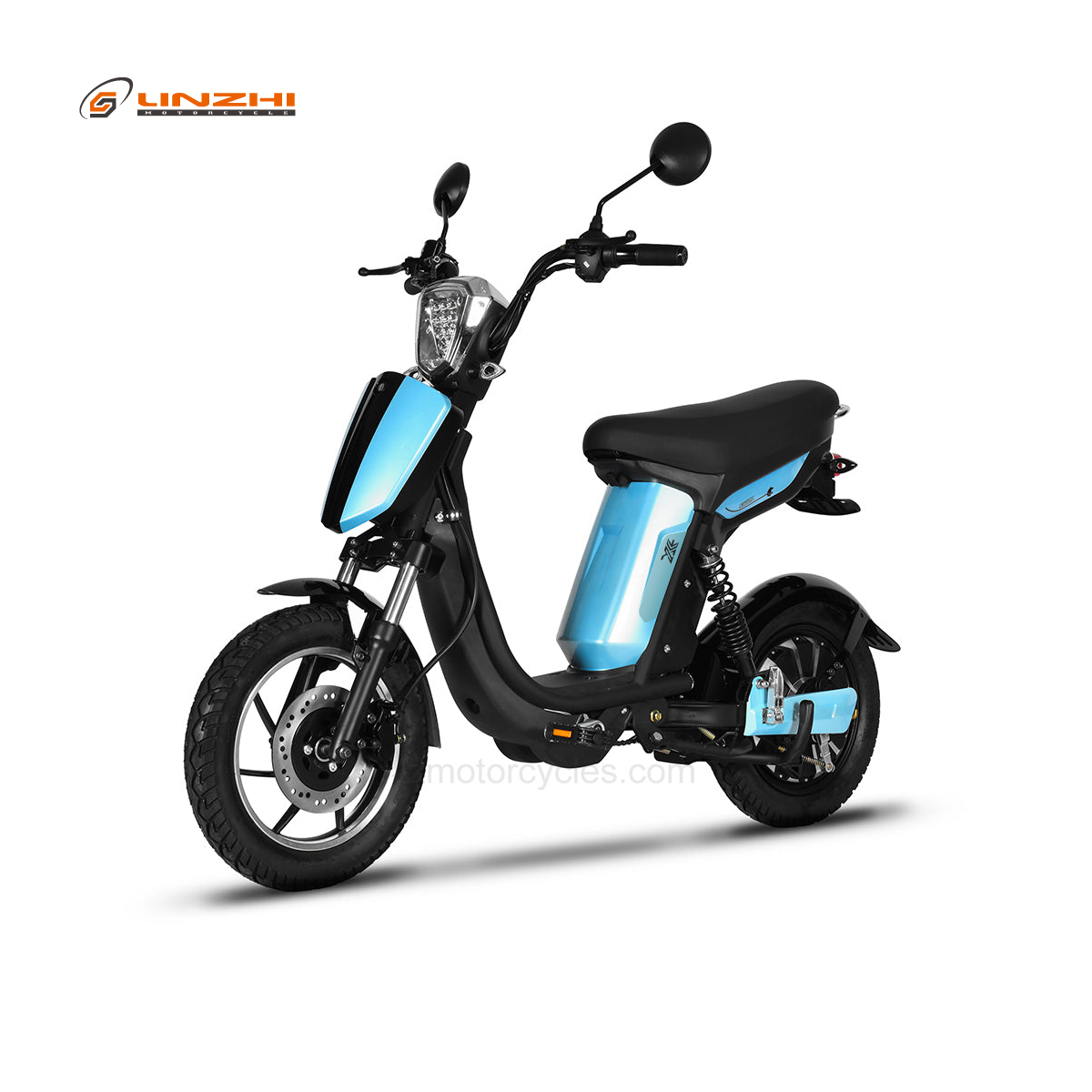

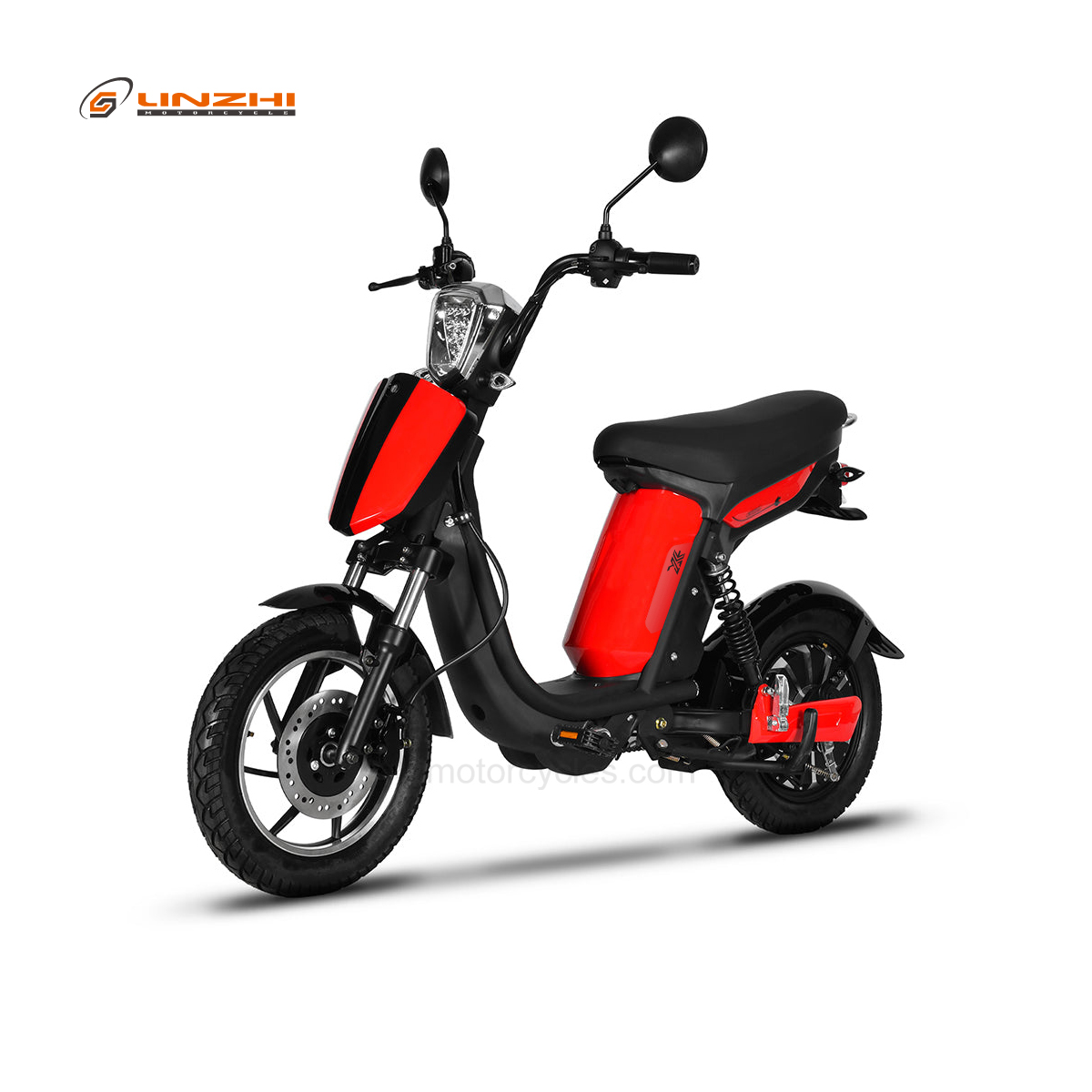

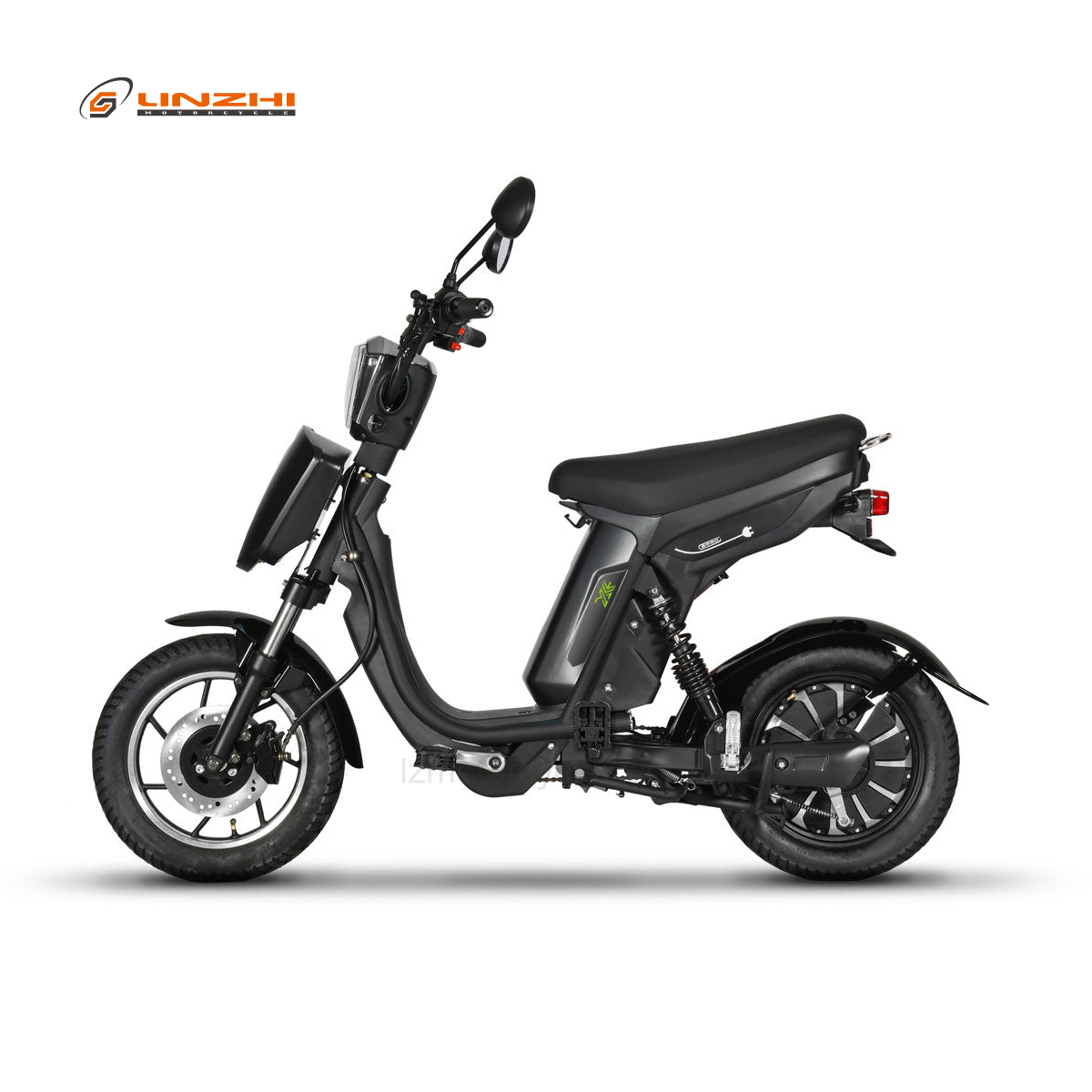

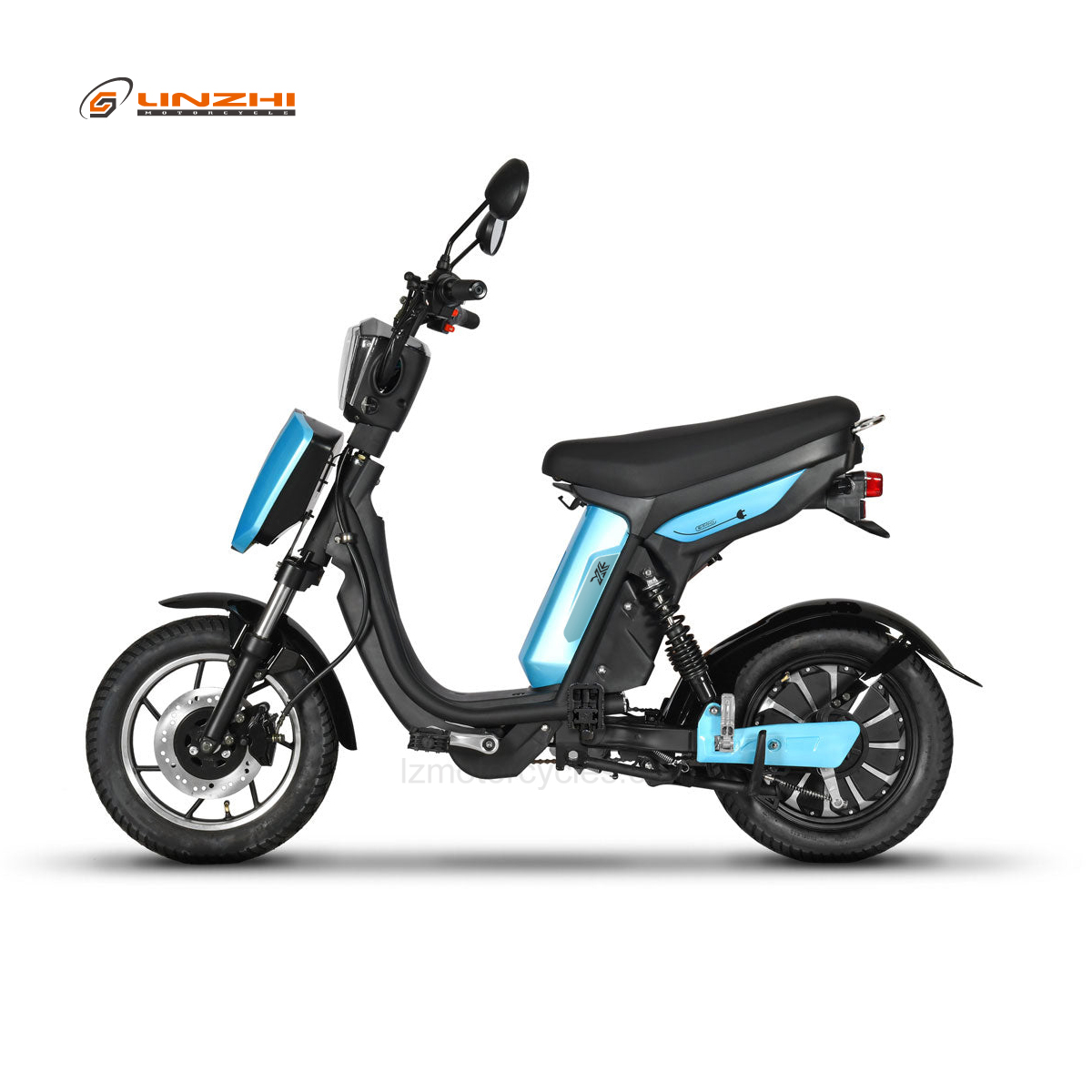

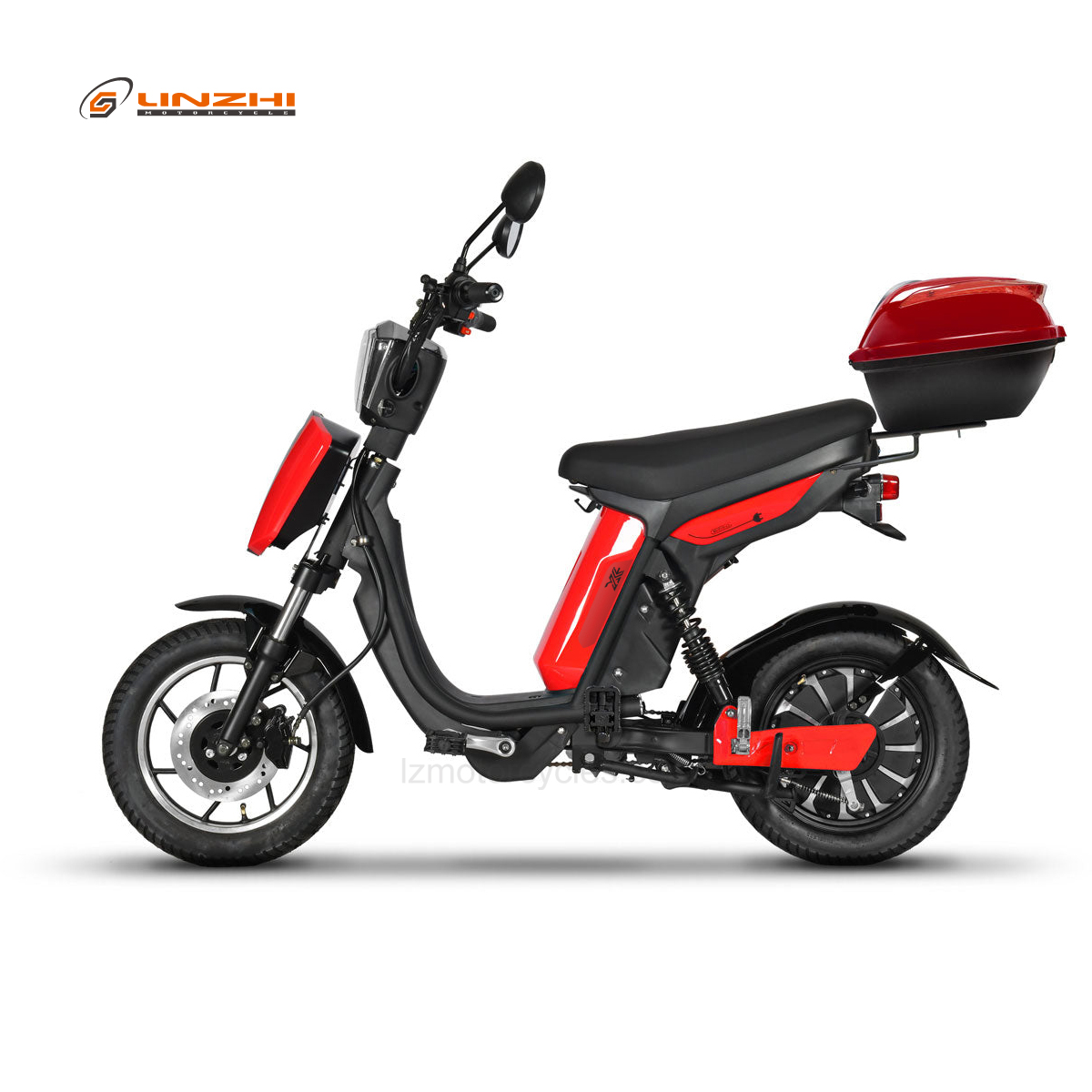

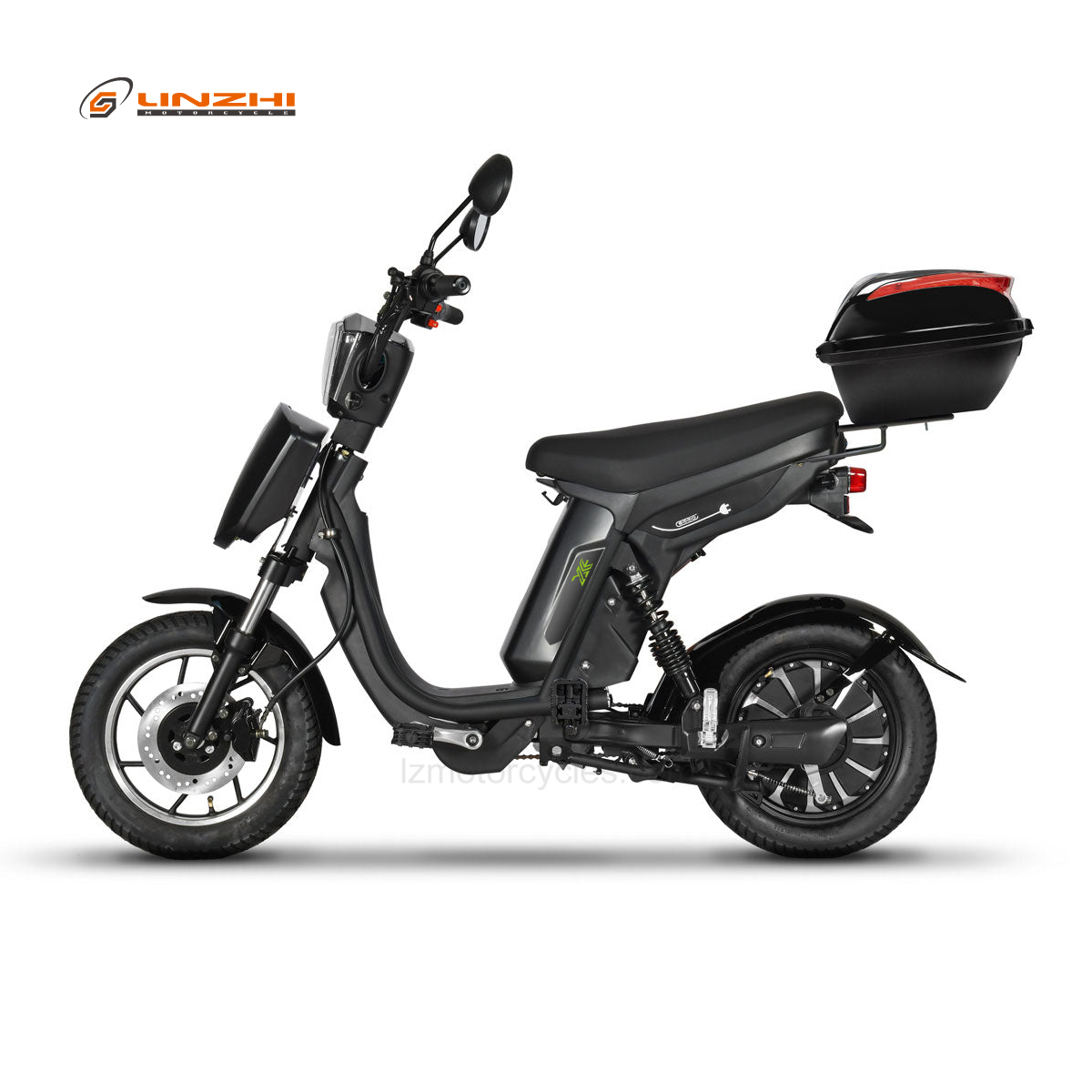

GALLERY
Images may include optional accessories available at an extra cost.
