SPECIFICATIONS
1. Engine and Transmission
| Technical Specifications | |
| Engine Type | Single Cylinder |
| Valve | 4 Stroke |
| Cooling System | Air Cooling |
| Bore* Stroke (mm) | 57.4*57.8 |
| Displacement (CC) | 149 |
| Compression Ratio | 9.2:1 |
| Fuel Supply | Carburetor/EFI |
| Starting System | Electric+Kick Start |
| Ignition | CDI/ECU |
| Max Power (kW/rpm) | 6.5/7000 |
| Max. Torque (N·m/rpm) | 9.5/6000 |
| Clutch Type | Dry Automatic Centrifugal Type |
| Transmission | Belt Drive |
2. Suspension, Brakes and Tyres
| Technical Specifications | |
| Suspension (Fr./ Rr.) | Normal, Normal |
| Brake System (Fr./ Rr.) | Disc, Disc |
| Tyre Size (Fr./ Rr.) | 120/90-10, 120/90-10 |
| Wheel Type | Alloy Wheel |
3. Dimensions
| Technical Specifications | |
| Vehicle Size (mm) | 2000*710*1150 |
| Wheel Base (mm) | 1470 |
| Ground Clearance (mm) | 160 |
| Seat Height (mm) | 730 |
| Tank Capacity (L) | 7 |
4. Performance
| Technical Specifications | |
| Max. Speed (km/h) | 90 |
| Max. Load (kg) | 150 |
PRODUCT DETAILS

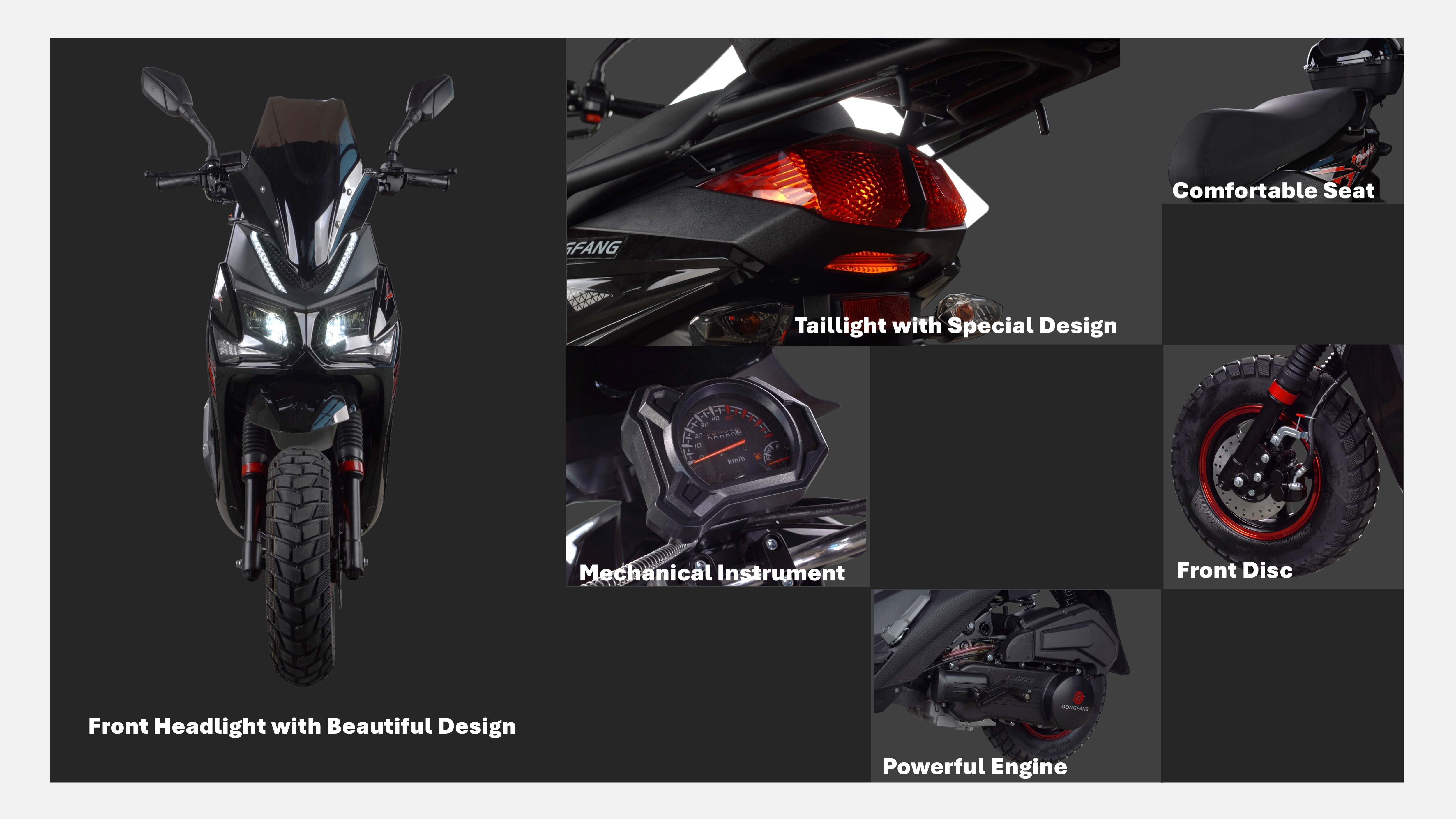

GALLERY
Images may include optional accessories available at an extra cost.
