SPECIFICATIONS
1. Engine and Transmission
| Technical Specifications |
| Engine Type | Single Cylinder/Four Stroke |
| Valve | 4 Stroke |
| Cooling System | Air Cooling |
| Bore* Stroke (mm) | 57.4*57.8 |
| Displacement (CC) | 149.5 |
| Compression Ratio | 9.76:1 |
| Fuel Supply | Carburetor/EFI |
| Starting System | Electric+Kick Start |
| Ignition | CDI/ECU |
| Max Power (kW/rpm) | 7.8 kw （7500±500 r/min） |
| Max. Torque (N·m/rpm) | 10N.m （6000±500 r/min） |
| Clutch Type | Dry Automatic Centrifugal Type |
| Transmission | Belt Drive |
2. Suspension, Brakes and Tyres
| Technical Specifications |
| Suspension (Fr./ Rr.) | Normal, Normal |
| Brake System (Fr./ Rr.) | Disc, Disc |
| Tyre Size (Fr./ Rr.) | 130/60-13, 130/60-13 |
| Wheel Type | Alloy Wheel |
3. Dimensions
| Technical Specifications |
| Vehicle Size (mm) | 1870*700*1160 |
| Wheel Base (mm) | 1400 |
| Ground Clearance (mm) | 145 |
| Seat Height (mm) | 770 |
| Tank Capacity (L) | 7 |
4. Performance
| Technical Specifications |
| Max. Speed (km/h) | 105 |
| Max. Load (kg) | 150 |

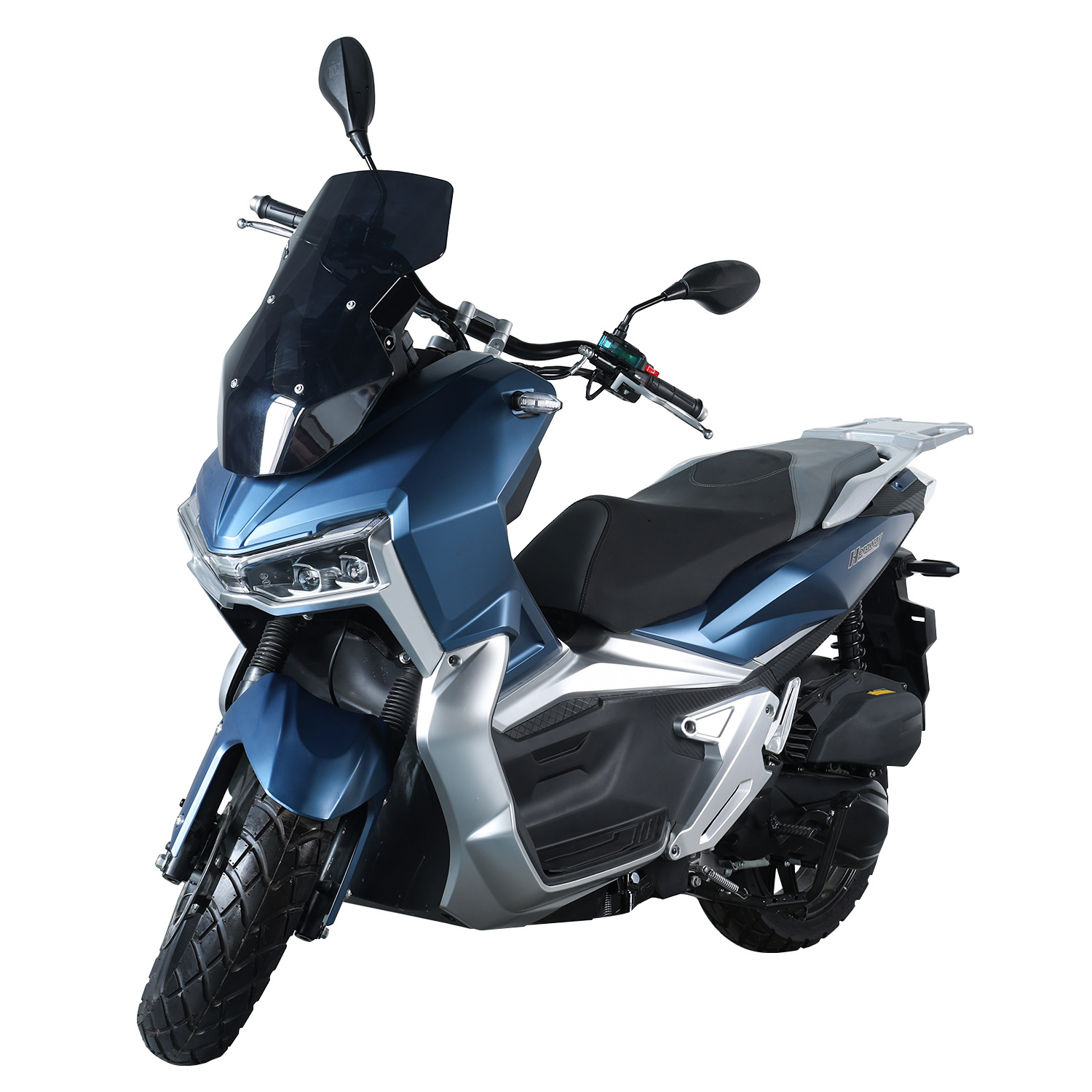

GALLERY
Images may include optional accessories available at an extra cost.
