SPECIFICATIONS
1. Engine and Transmission
| Technical Specifications |
| Engine Type | Double Cylinder |
| Valve | 4 Stroke |
| Cooling System | Liquid Cooling |
| Bore* Stroke (mm) | 63.5*62.2 |
| Displacement (CC) | 394 |
| Compression Ratio | 10.5:1 |
| Fuel Supply | Carburetor/EFI |
| Starting System | Electric |
| Ignition | CDI/ECU |
| Max Power (kW/rpm) | 25.5/7800 |
| Max. Torque (N·m/rpm) | 33/5500 |
| Clutch Type | Oil Bath Multi-chip Type |
| Transmission | Chain Drive |
2. Suspension, Brakes and Tyres
| Technical Specifications |
| Suspension (Fr./ Rr.) | Inverted, Central |
| Brake System (Fr./ Rr.) | Disc, ABS, Disc, ABS |
| Tyre Size (Fr./ Rr.) | 110/70-17, 150/70-17 |
| Wheel Type | Alloy Wheel |
3. Dimensions
| Technical Specifications |
| Vehicle Size (mm) | 2060*770*1120 |
| Wheel Base (mm) | 1420 |
| Ground Clearance (mm) | 150 |
| Seat Height (mm) | 890 |
| Tank Capacity (L) | 7 |
4. Performance
| Technical Specifications |
| Max. Speed (km/h) | 130 |
| Max. Load (kg) | 150 |

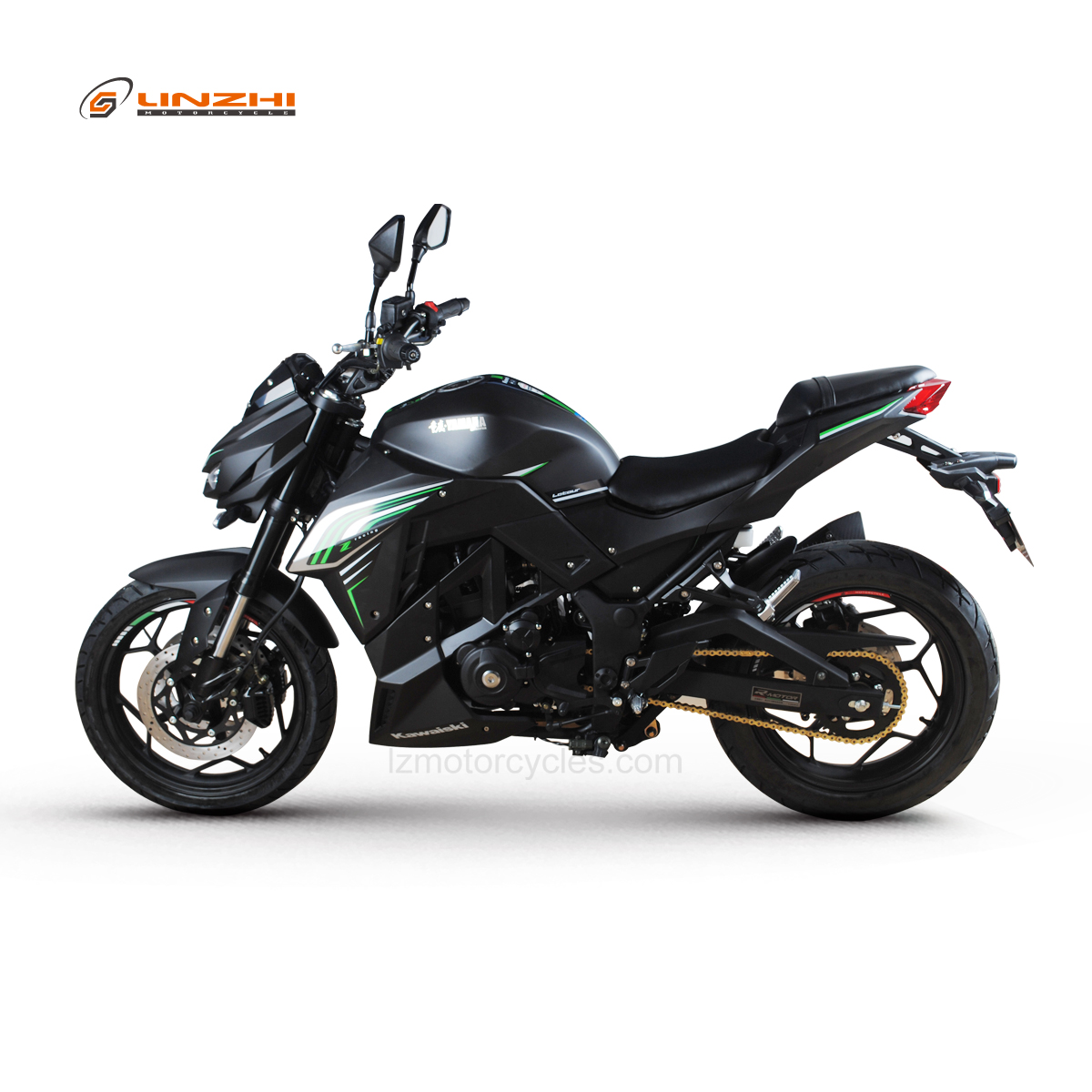

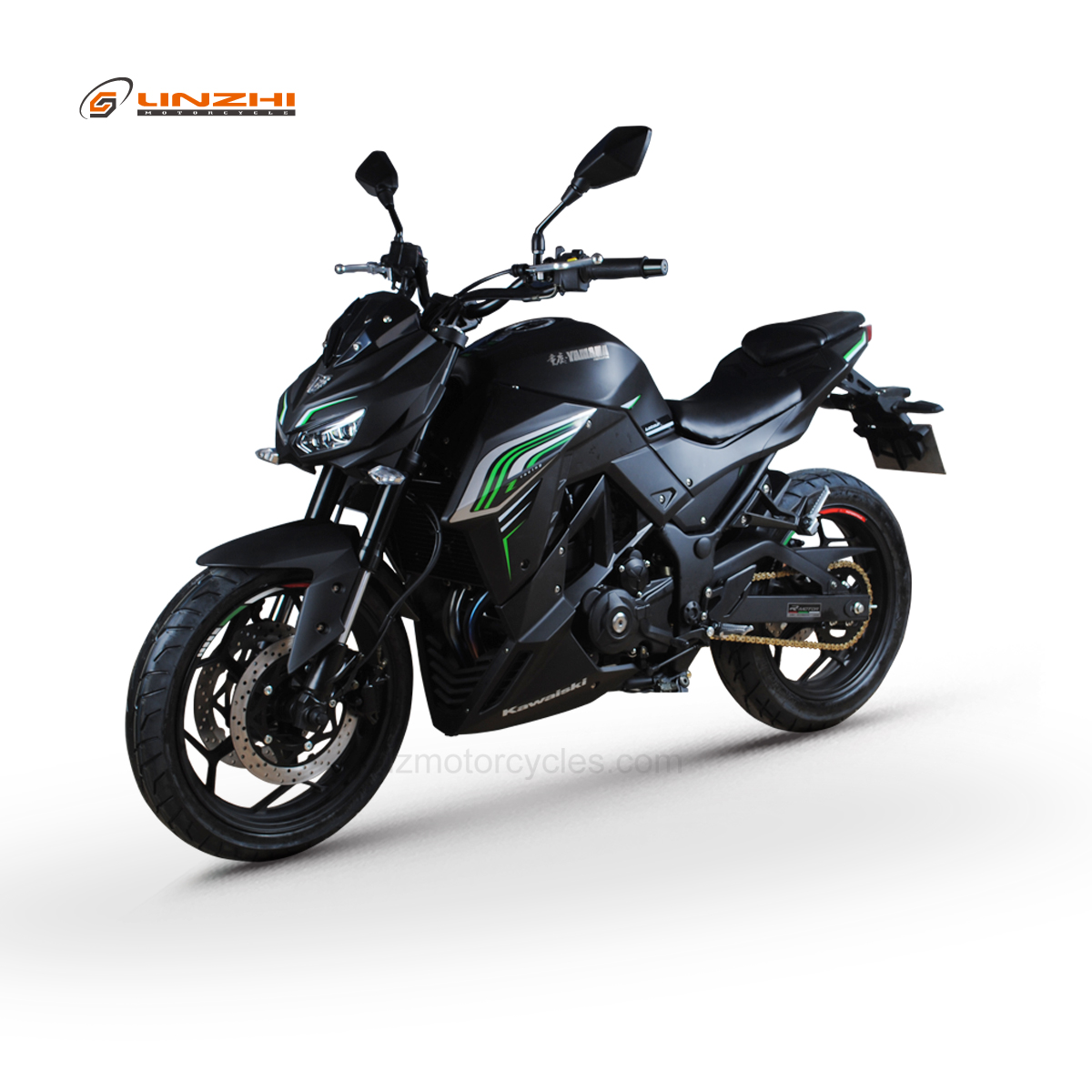

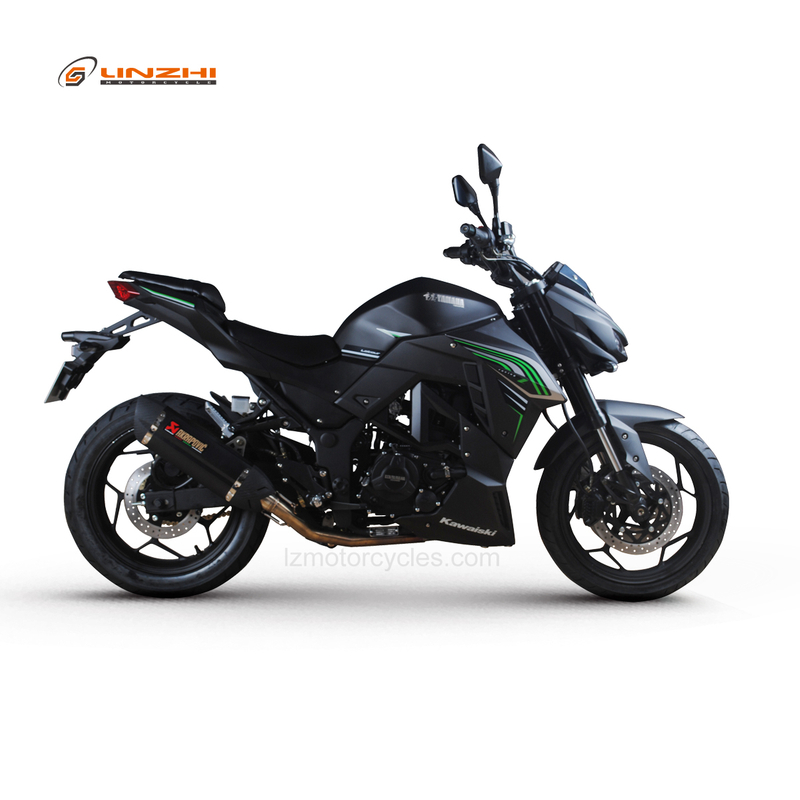

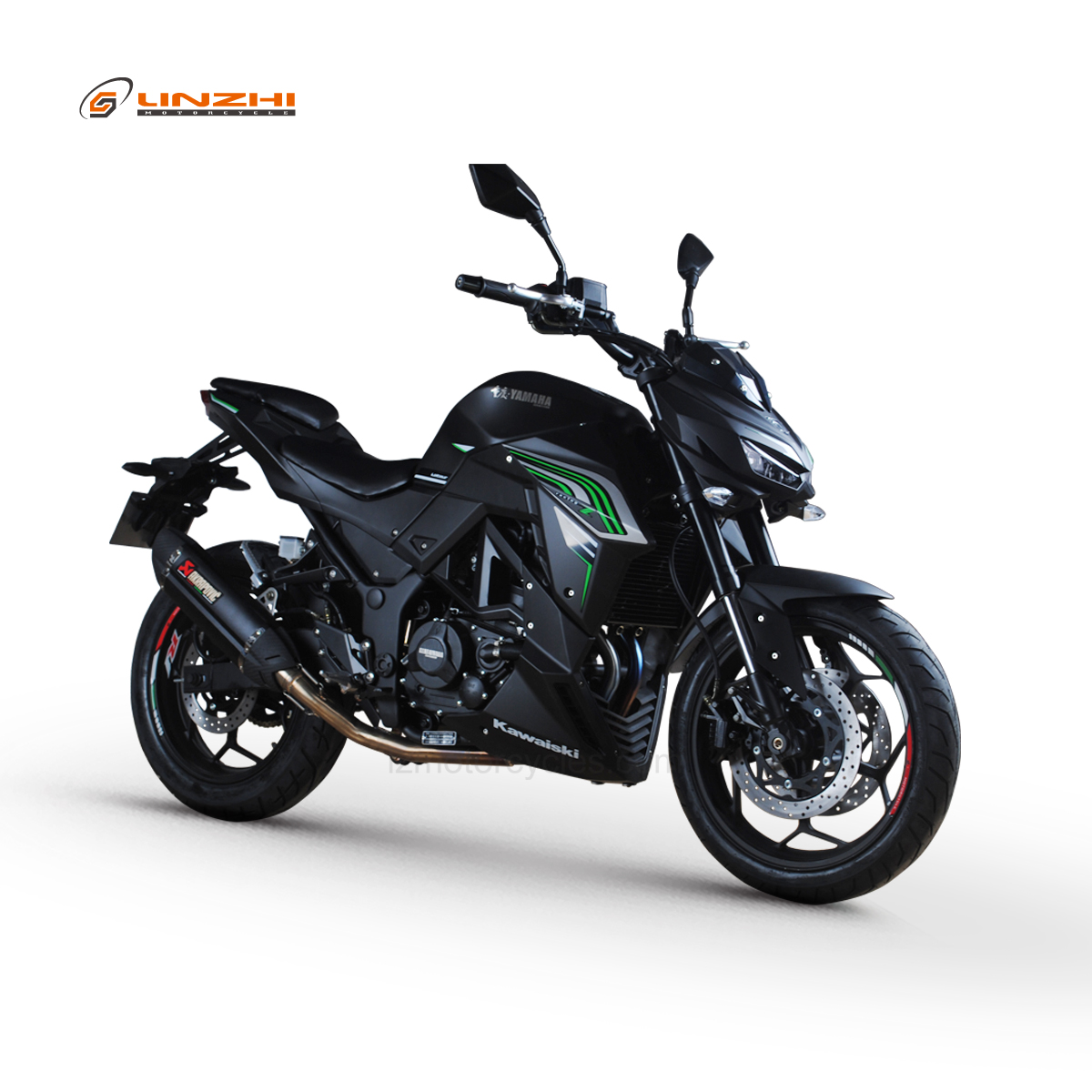

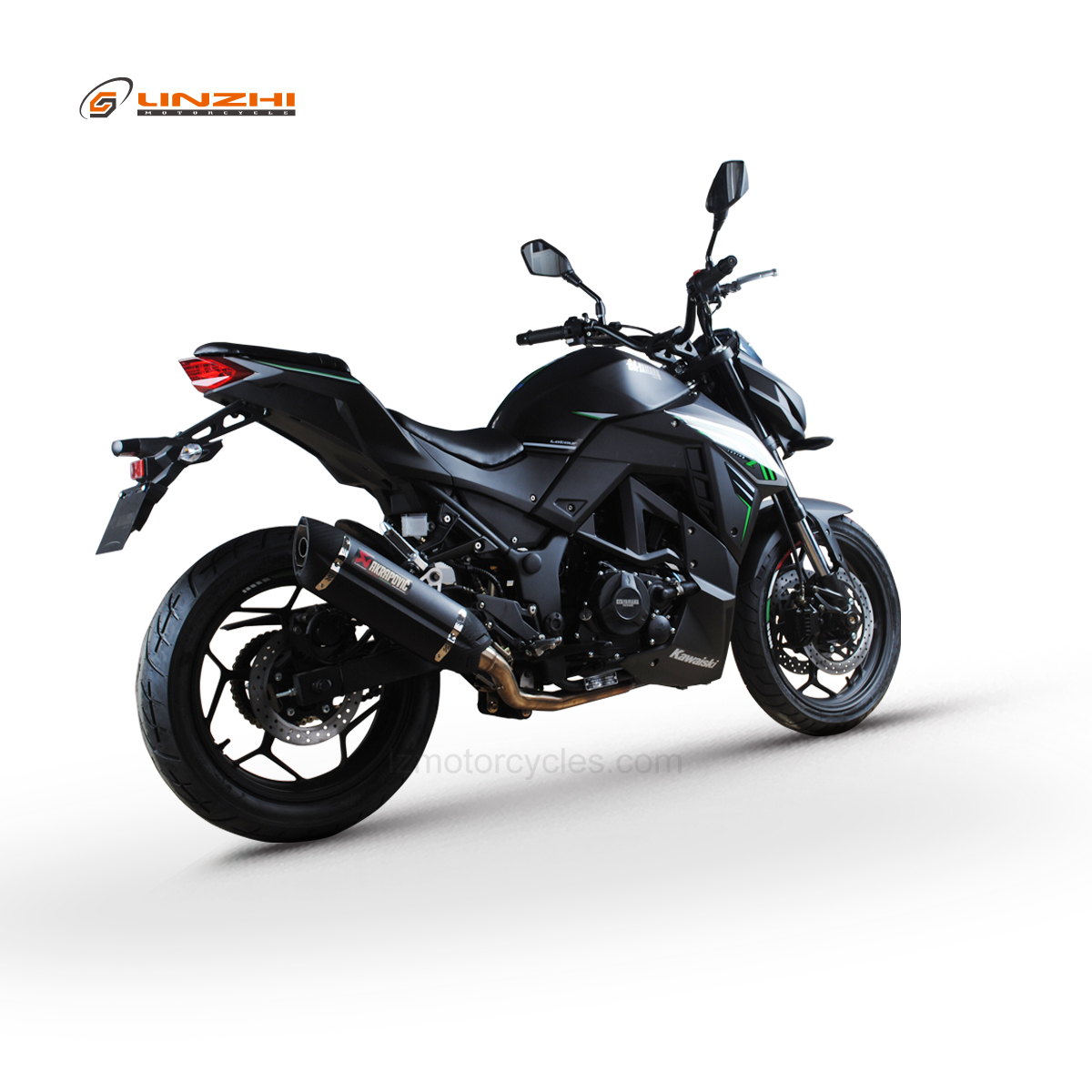

GALLERY
Images may include optional accessories available at an extra cost.
